本檔案之內容及圖片均為 德國 製造廠之專利

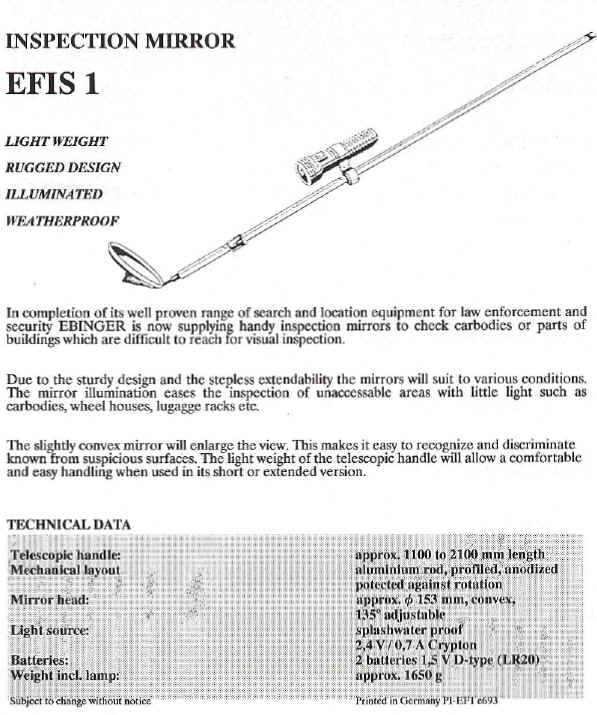

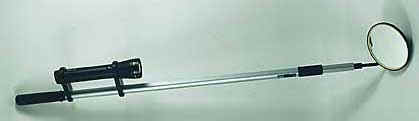

謹 限用 於介紹 該原廠製造生產之 EFIS-1 車底檢視鏡
|
|
|
| Dimensions | |
| Mirror | approx. D : 153 mm, adjustable. |
| Telescopic pipe-shaped handle | minimum length: approx. 1100 mm |
| maximum length: approx. 2,100 mm | |
| Weight | approx. 1.65 kg |
| Power supply | |
| Battery type | 2 x 1.5 V round D Type cells LR 20 |
| Operation time | approx. 10 - 12 hr. |
| Lightning | |
| Lamp type | 2.4V / 0.7A Cryplon |
