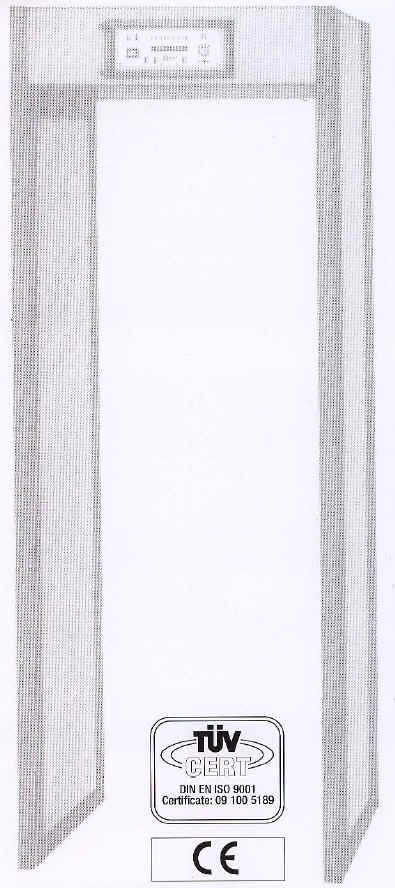

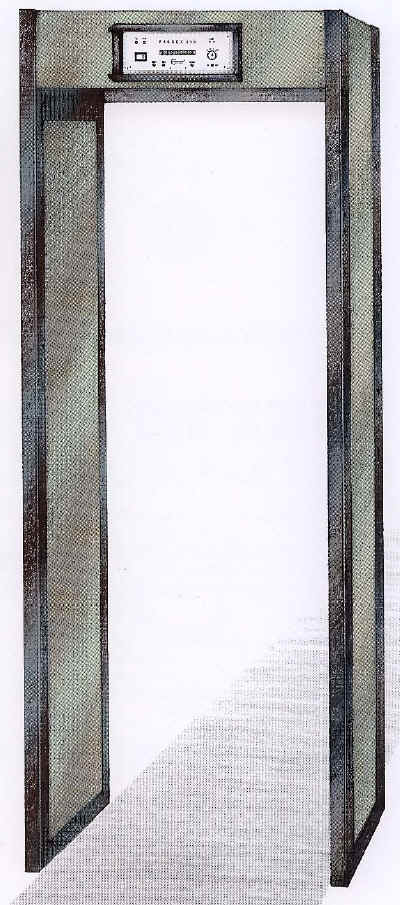

The PASSEX® 210 walk-through metal detector works on the basis of the new EBINGER pulse-induction differential method that guarantees extremely high detection sensitivity and good interference suppression. The PASSEX® 210 is extremely insensitive to vibration and mechanical stress. It can be operated either statically or, for automatic electrical ambience compensation, dynamically. The emergency power supply is automatically tapped if ever the mains supply is interrupted. The capacity of the built-in rechargeable battery is sufficient to provide an operation time of approx. 10 hours.
The PASSEX® 210 can be dismantled for transportation purposes. Even untrained staff can assemble it in no time without needing any special tools as well as put it into operation
|
Technical Data |
|
| Dimensions H x W x D | |
| Internal clearance | approx. 2,000 x 750 x 595 mm |
| Electronics housing | approx. 110 x 290 x 200 mm |
| Weight | approx. 20 kg incl. electronics |
| Power supply | |
| Rechargeable battery | 12 V, 1.3 Ah |
| Operation time | approx. 10 h |
| Charging time | approx. 14 h |
| Charger | Lead-gel - charger 0.5 A |
| Mains operation | Rechargeable battery is automatically topped up |

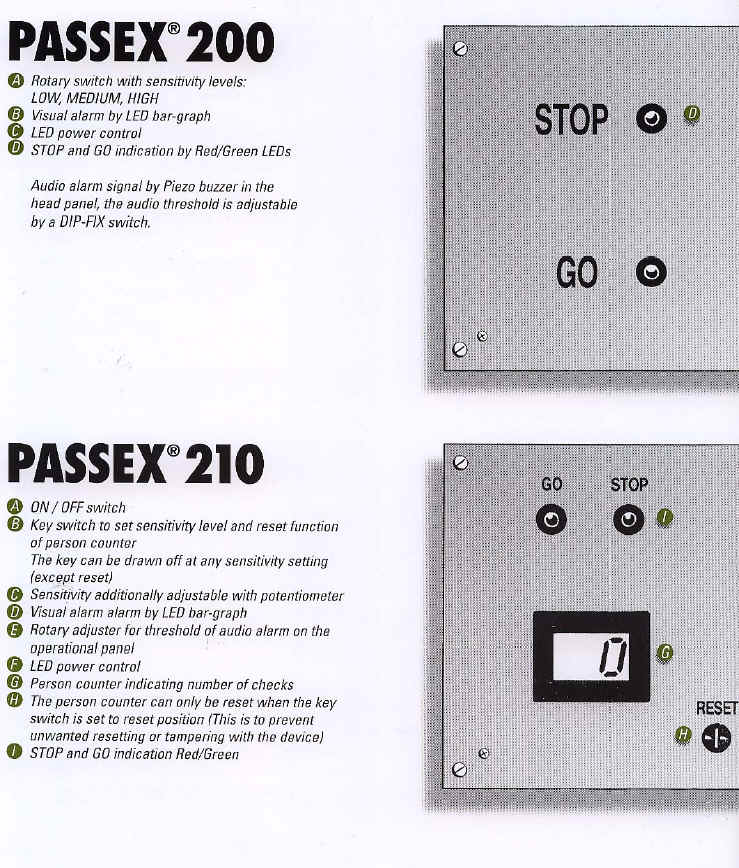

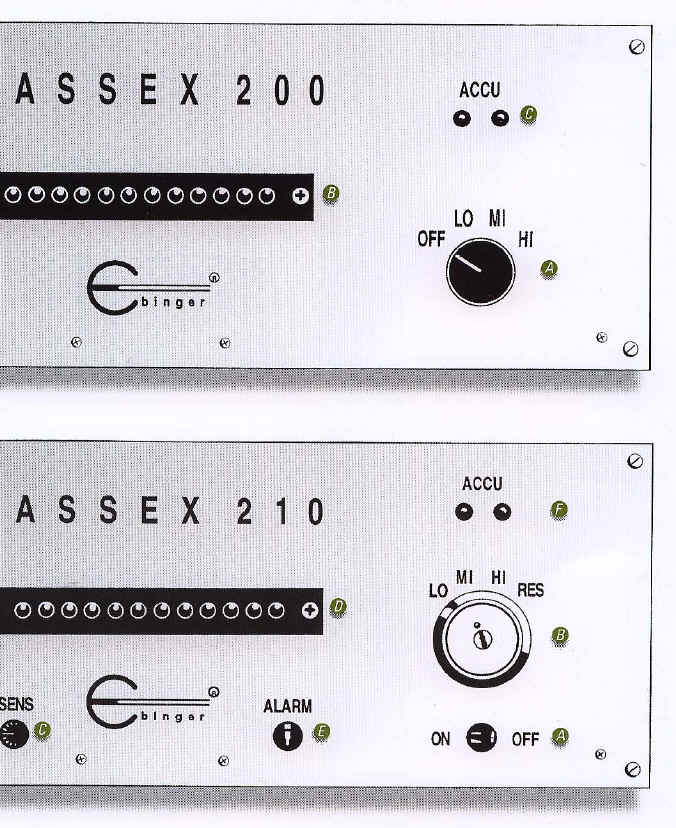

| Operating and control elements | |
| LED red / green | Rechargeable battery voltage check |
| Bar indicator (LED) | Optical alarm |
| Sensitivity | 3 levels via key-operated switch |
| Alarm transmitter | Volume smooth-setting |
| Operating switch | ON/OFF flip switch |
| Switch output | Floating, normally open contact approx. 10 VA max. |
| or 100 V DC max. / 0.5 A DC max. | |
 |
|
|
 |
 |
|
|
 |
