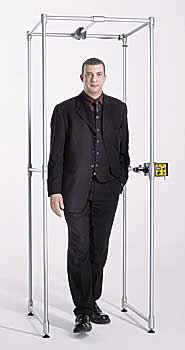

The new PASSEX® 100 M walkthrough metal detector further enhances the range of EBINGER walk-through detectors - state-ofthe- art inspection facilities that have many security-related applications. The PASSEX® 100 M walk-through metal detector is used to seek dangerous metal objects that have to be identified when personal security checks are performed.
The PASSEX®
100 M is a cutting-edge innovation that has specific advantages of benefit to
its user. It comprises an aluminium unit, the metal sensor, that can be easily
dismantled. This means it can also be used outdoors for several hours as it does
not have to run on the mains.
|
|
|
|

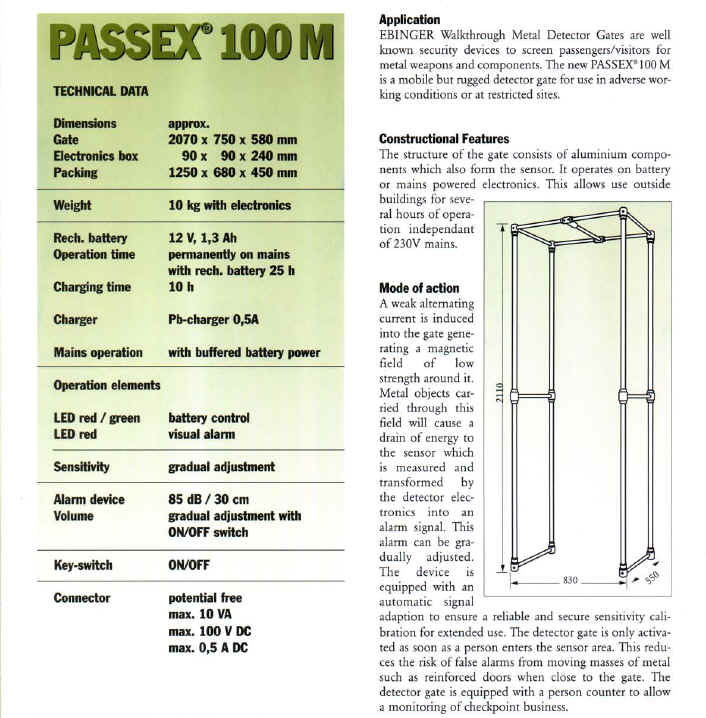

Technical Data |
|
| Dimensions H x W x D | |
| Internal clearance | approx. 2,070 x 750 x 580 mm |
| Electronics housing | approx. 90 x 90 x 240 mm |
| Packaging | approx. 1250 x 680 x 450 mm |
| Weight | approx. 10 kg incl. electronics |
| Power supply | |
| Rechargeable battery | 12 V, 1.3 Ah |
| Operation time | approx. 25 h |
| Charging time | approx. 10 h |
| Charger | Lead-gel - charger 0.5 A |
| Mains operation | Rechargeable battery is automatically topped up |

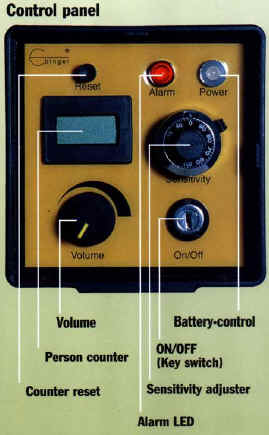

| Operating and control elements | |
| LED red / green | Rechargeable battery voltage check |
| Bar indicator (LED) | Optical alarm |
| Sensitivity | Smooth setting adjuster with lock |
| Alarm transmitter | Volume smooth-setting via sound ON/OFF switch |
| Operating switch | Key operated ON/OFF switch |
| Switch output | Floating, normally open contact approx. 10 VA max. |
| or 100 V DC max. / 0.5 A DC max. | |
